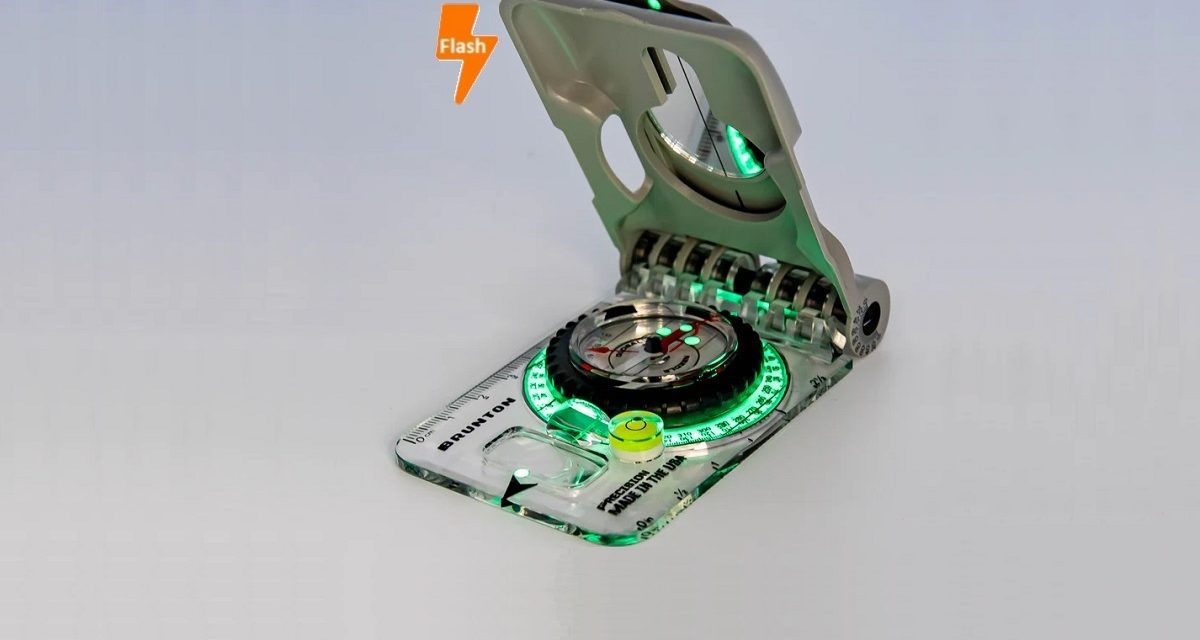

TruArc 20 luminous compass, so you don’t miss the North

Description

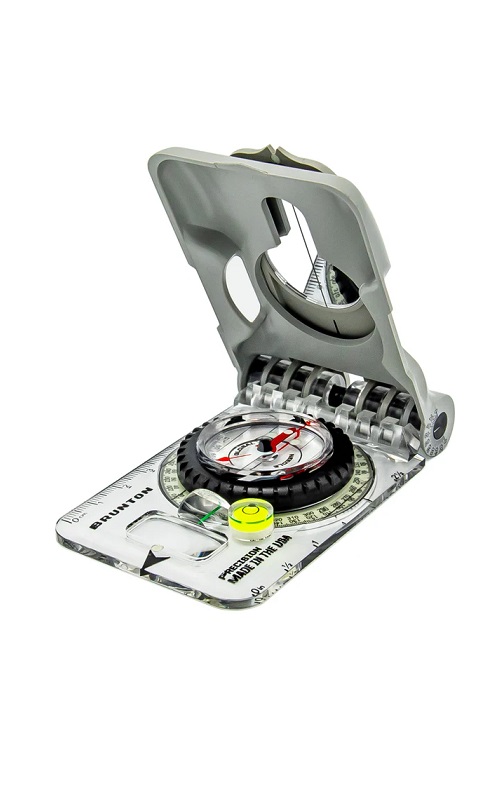

The TruArc™ 20 luminous compass is the greatest exponent of Brunton compasses. Configured with a field compass, it is a step higher than the rest of the compasses on the market, mainly due to its extraordinary specifications. Some of the most important are:

• The TruArc™ global needle tilts up to 20° for balanced use around the world.
• Tool-free tilt adjustment is simple and quick to orient magnetic north to true north.
• The dial features meridian lines that facilitate pre-trip planning by aligning with the grid lines on the map.
• The ruler is available in inches/centimeters (global) or metric scales (metric only) for accurate mapping work.
• It allows you to follow a course even at dusk thanks to its 8 hours (maximum) of azimuth ring photoluminescence .
• Romer scales provide maximum latitude and longitude accuracy to integrate with a portable GPS.
• The Brunton EverNorth magnet is resistant to degaussing over time.
• The extended reading provides the highest level of accuracy without compromising readability.
• The observation mirror and aiming line are integrated into the cover.
• Align to get the most accurate orientation, either by taking or following an orientation.
• Clinometer with a resolution of 2° to measure the angle of slope or the height of steps, peaks or trees.
• Engineer’s rule.
• Spirit level for absolutely accurate readings; Keeping the compass level (not the needle) is critical to taking accurate orientation.
• It contains a map magnifying glass that makes it easy to read the smallest details.
• Quick reference cover for easy and quick readings.
• The rubber cover and foot protect the compass and house reference cards.
• It containsuser-specific reference cards with scales and rulers.
• High-visibility adhesive for better low-light performance; It can be removed for easy use of the map.
• Azimuth ring with a resolution of 1° for accurate readings.

Notes

• The angle between magnetic and geographic north is called magnetic declination and varies depending on the time and location on the globe. It is important to consider declination before taking measurements by adjusting the compass or traffic, or after measurement, by adding or subtracting the angle of declination depending on time and place.
• All Brunton baseplate transits and compasses are adjustable for magnetic declination. Please refer to the instruction manuals for each product or the general instructions for more information.
• NOAA’s Magnetic Declination Calculator allows you to instantly calculate magnetic declination: https://www.ngdc.noaa.gov/geomag/calculators/magcalc.shtml. NOAA also has a wealth of information on the magnetic field in general and other factors that affect the behavior of compass needles in various parts of the world.
• The needles of Brunton recreational compasses are global. In all of our professional instruments, the needle magnets are optimized for a specific area where they are optimally balanced, but work well in five or more north or south zones.

Technical data sheet

• Dimensions: 10.4 x 6.3 x 2.5 cm.
• Weight: 102 gr.
• Azimuth: 1º resolution.

Instruction Manual

The Brunton TruArc™ compass has a complete instruction manual (click here).

Feedback

For users like me, who don’t usually do routes that require guidance, the TruArc™ 20 compass is very big and, honestly, we don’t need it. But there is a group of people who, on a daily basis, for professional reasons (cartography, army, rescue, etc…) or for an extra-work activity (geology, adventure in snow, forests or desert, etc…), need a precise instrument of orientation and measurement to perform well.

For them, the TruArc™ 20 compass is an ideal instrument, due to its low weight, small size and very high performance. In addition to its quick-access lid and rubber base that, in addition to housing reference cards , protects the compass from shocks and premature wear of the ruler paint.

In short, this is a professional instrument, manufactured by the leading company in the sector (in the jargon they say: a Brunton-type compass!) and with very high precision. You know, so as not to lose the North!
